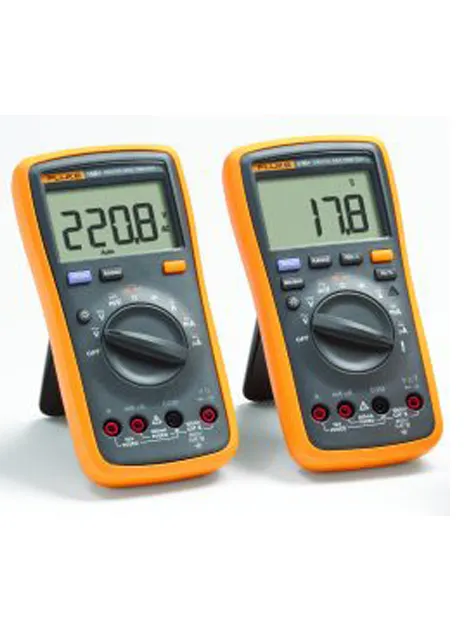

FLUKE 17B+ Digital Multimeter
Brand : FLUKE
Warranty : 3days
Original price was: 17,250.00৳ .16,999.00৳ Current price is: 16,999.00৳ .
Product details
Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.
Description
If you are looking for a rugged, reliable and most accurate digital multimeter – we want to suggest you for selecting the Fluke 17B+ Digital Multimeter. Which does all the basic electrical measurements and plus with device temperature frequency and duty cycle measurement features.
Key Features
- 600 V Cat III Safety Rating
- 50% Bigger Display with Bright White Backlight
- Over-Voltage Indicator
- Frequency and Temperature Measurement
- Voltage, Resistance, Continuity, Capacitance
- Input Terminal for AC and DC current measurements to 10 A current
- Diode Test, Data Hold
|

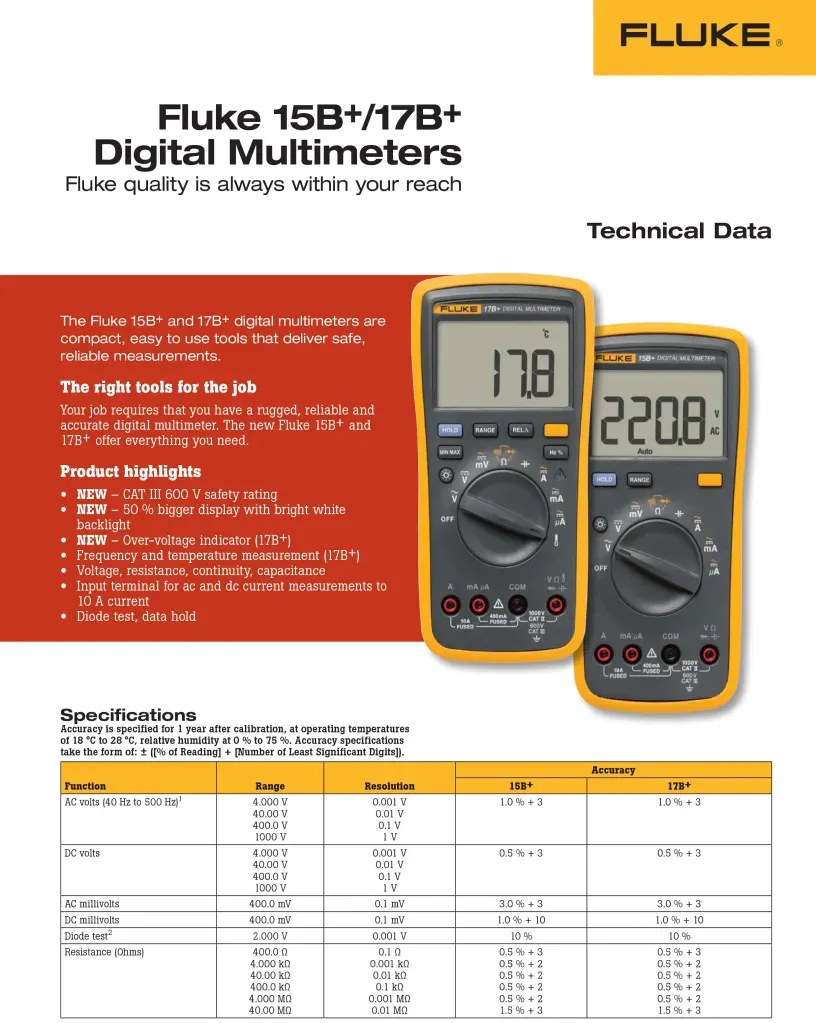

Function |
Range |
Resolution |
Accuracy |
|---|---|---|---|
|
AC Volts (40 Hz to 500Hz) |
4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
1.0% + 3 |
|
DC Volts |
4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
0.5% + 3 |
|
AC Millivolts |
400.0 mV |
0.1 mV |
3.0% + 3 |
|
DC Millivolts |
400.0 mV |
0.1 mV |
1.0% + 10 |
|
Diode Test2 |
2.000 V |
0.001 V |
10% |
|
Resistance (Ohms) |
400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3 |
|
Capacitance3 |
40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF |
0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF |
2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5 |
|
Frequency1 Hz (10 Hz – 100 kHz) |
50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz |
0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz |
0.1% + 3 |
|
Duty Cycle1 |
1% to 99% |
0.1% |
1% typical4 |
|
AC current μA (40 Hz to 400 Hz) |
400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5% + 3 |
|
AC current mA (40 Hz to 400 Hz) |
40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5% + 3 |
|
AC current A (40 Hz to 400 Hz) |
4.000 A 10.00 A |
0.001 A 0.01 A |
1.5% + 3 |
|
DC current μA |
400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5% + 3 |
|
DC current mA |
40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5% + 3 |
|
DC current A |
4.000 A 10.00 A |
0.001 A 0.01 A |
1.5% + 3 |
|
Temperature |
50 °C - 400 °C 0 °C - 50 °C -55 °C - 0 °C |
0.1C |
2% ±1 °C ±2 °C 9% ±2 °C |
|
Backlight |
- |
- |
Yes |
