10kΩ Stereo Variable Resistor (Potentiometer)

Name: 10kΩ Stereo Variable Resistor (Potentiometer)
SKU: 3016
Price: 22.00 BDT
Availability: InStock

22.00৳

Product details

Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.

Description

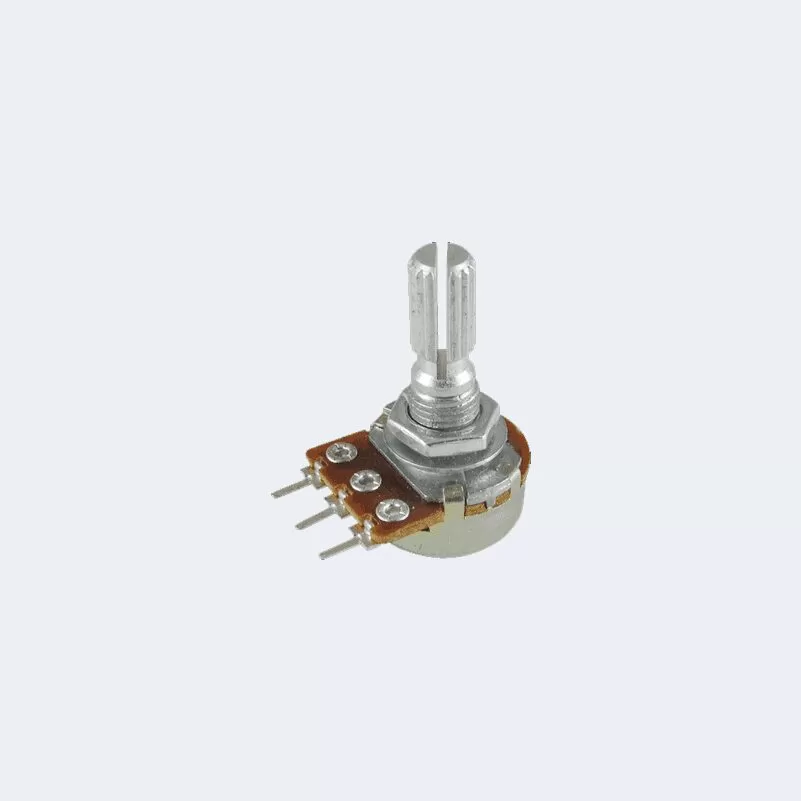

The 10k Ohm Stereo Rotary Potentiometer is a kind of resistor that can change its value. It is used to reduce the strength of two signals at the time. It has two parts that do not touch each other. Each part has 10k resistance. They are both controlled by one shaft. This helps make sure that the left and right parts of the sound are balanced and match each other.

It comes in a shape that can be placed through a hole in a board. It has threads for the panel. This type of potentiometer is used in different places. It is used in preamplifiers. It is used in headphone amplifiers. It is used in DIY synth controllers. It is used in equipment, for analog work.

Key Features and Benefits:

Dual-Gang Architecture: Has two 10k elements on one shaft that work together making sure that the sound levels are the same on both the left and the right sides.
Optimized for Audio and Control: Works well with the input settings of modern audio amplifiers, Class-D boards and devices that change analog sound to digital.
Panel-Mount Hardware Included: Comes with a threaded collar, a nut and a washer so it can be fixed securely into a panel.
Smooth Mechanical Travel: Has a 300-degree rotation that feels clean and has a touch makes very little noise and keeps the connection strong.
Versatile Termination: Has options, for solder-lug or PCB-pin connections so it can be added easily into custom circuits, small boards or mass-produced circuit boards.

General Specification Table

Parameter	Value	Unit	Condition
Component Type	Dual-Gang Rotary Potentiometer	—	Stereo configuration
Nominal Resistance	10k (10,000)	Ohm	Track resistance
Number of Gangs / Channels	2 (Dual Channel)	—	Mechanically coupled
Resistance Tolerance	+/-20%	—	Standard commercial grade
Resistance Taper	Audio / Logarithmic (Type A) or Linear (Type B)	—	Model dependent
Total Mechanical Rotation Angle	300 +/- 5	Degrees	Full mechanical sweep
Mounting Type	Panel Mount / Through-Hole PCB	—	Includes washer and hex nut
Shaft Type	Knurled / Split Shaft (18 Teeth) or D-Shaft	—	Standard 6 mm diameter
Rotational Life	10,000 to 15,000	Cycles	Minimum rated endurance
Operating Temperature	-10 to +70	°C	Standard ambient window

Technical Specification

Electrical / Mechanical Parameter	Symbol	Value	Unit	Test Conditions / Details
Power Rating	P	0.05 (Audio Taper) / 0.1 (Linear)	W	At 50°C ambient
Maximum Operating Voltage	Vmax	50 (Audio) / 150 (Linear)	V AC	Continuous working limit
Residual Resistance	Rres	<= 20	Ohm	Terminals 1~2 / 2~3 at track ends
Gang Error (Tracking Error)	—	<= -3 dB to 0 dB	dB	Within -40 dB to 0 dB range
Rotational Torque	—	20 to 200	gf.cm	Smooth rotation resistance
Shaft Stop Strength	—	5.0 to 6.0	kgf.cm	Maximum end-stop limit
Insulation Resistance	IR	>= 100	MOhm	Measured at 250V DC
Dielectric Withstand Voltage	VDW	250 to 500	V AC	1 minute duration
Solder Heat Resistance	Tsolder	260	°C	<= 3 seconds at pin terminals

Common Applications

Stereo Volume Control: Reducing the volume at the time for active bookshelf speakers, headphone amplifiers and car audio preamps.
Mixer Consoles & Equalizers: Adjusting gain on two channels and leveling frequencies, in analog soundboards.
Microcontroller Analog Inputs: Using a ratiometric DC voltage divider to tune two parameters on Arduino, ESP32 or Raspberry Pi Pico analog pins.
Synthesizers & Effects Pedals: Controlling stereo /dry mix, adjusting filter resonance and setting LFO modulation with knobs.
