2.4″ / 2.8″ TFT LCD Touch Screen (SPI/Arduino Shield)
1,050.00৳
Product details
Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.
| Size |
2.4" ,2.8" |
|---|
Description

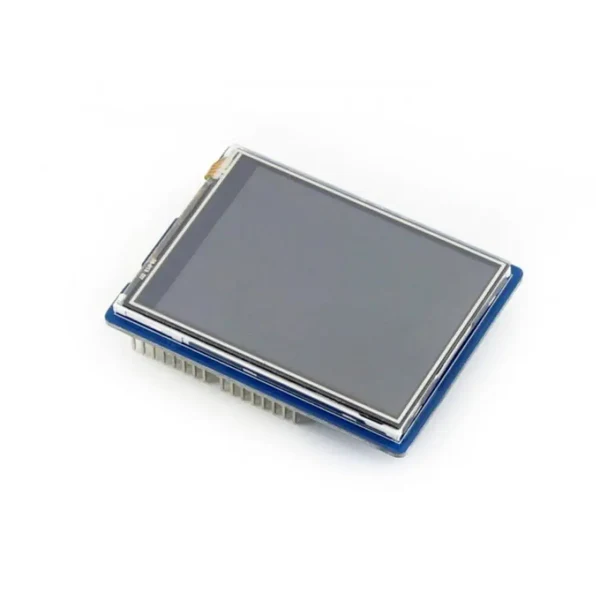

The 2.4 inch / 2.8 inch TFT LCD Touch Screen Display is a full color display module that can be used as a simple to use plug and play shield for Arduino (UNO/Mega) or as a fast SPI breakout board. It provides a 240 x 320 RGB resolution with up to 65K/262K colors. This display gives visual results for interactive user interfaces.
It has a built in 4 wire resistive touch panel and a small SD (TF) card slot. This allows you to show custom images create menus save sensor information and manage user touch input directly from microcontrollers such, as Arduino, STM32 and ESP32.
Â
Key Features

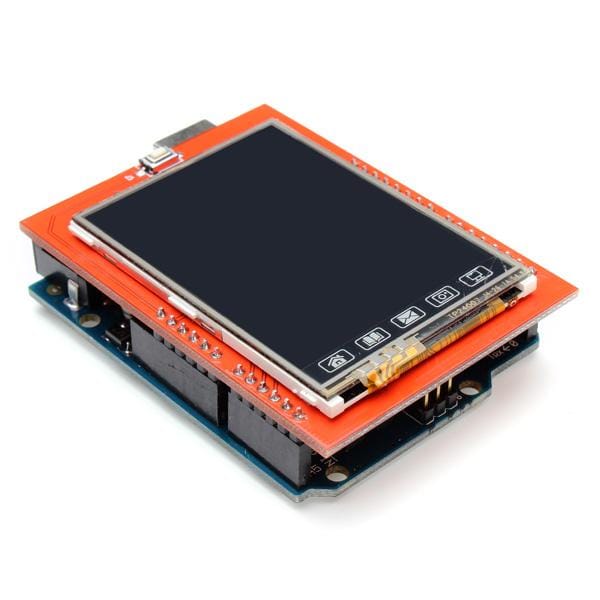

- Direct Shield Integration: The shield version fits directly on top of Arduino UNO boards, Leonardo boards and Mega 2560 boards without needing breadboards or jumper wires.
- Resistive Touch Panel: There is a 4-wire touch overlay built in that allows for push-button controls, tracking of coordinates and drawing on the screen.
- Onboard Micro-SD Slot: This feature gives a way to store files and read and display high-resolution.BMP image files or save data directly onto an SD card.
- Extensive Library Support: It works with open-source Arduino graphics libraries such, as Adafruit_GFX, MCUFRIEND_kbv and TFT_eSPI.
General Specification
|
Parameter |
Specification |
Note |
|---|---|---|
|
Screen Sizes |
2.4-inch / 2.8-inch diagonal |
Active display area |
|
Resolution |
240 x 320 Pixels |
Full RGB color (up to 65K colors) |
|
Display Driver IC |
ILI9341 / SPFD5408 / ST7789 |
Standard high-performance graphic drivers |
|
Interface Type |
8-Bit Parallel (Shield) or 4-Wire SPI |
Shield plugs directly into Arduino UNO/Mega |
|
Touch Panel Type |
4-Wire Resistive Touch |
Responds to finger pressure or stylus |
|
Operating Voltage |
3.3V – 5.0V DC |
Shield includes onboard 3.3V LDO regulator |
|
Logic Level |
3.3V (5V compatible via buffer/shield) |
Direct 5V compatible on Arduino shields |
|
Additional Storage |
Micro-SD (TF) Card Socket |
Uses SPI bus for loading images/assets |
