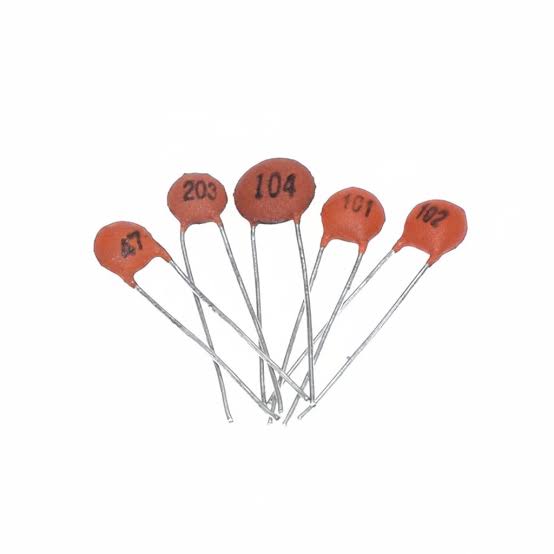

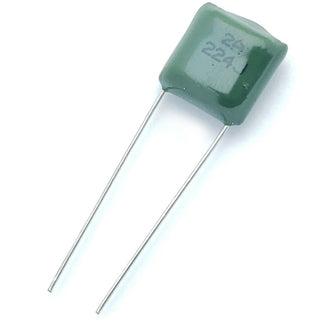

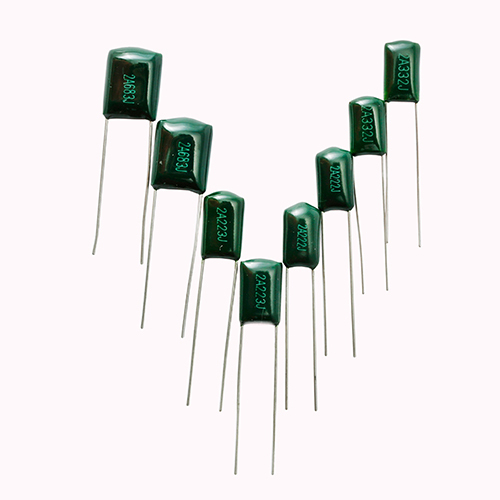

Ceramic/Polyester Capacitors (Mixed: 104, 0.047µF, 0.1µF)
5.00৳
Product details
Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.
Description
General Specification Table
|
Parameter |
Value |
Unit |
Condition |
|---|---|---|---|
|
Dielectric Type |
Ceramic Disc / Polyester Film (Mylar)
|
— |
Mixed assortment |
|
Polarity |
Non-Polarized |
— |
Bi-directional insertion |
|
Termination Type |
Radial Through-Hole |
— |
Standard PCB and breadboard compatible |
|
Marking Codes |
104 (0.1uF / 100nF), 473 (0.047uF / 47nF) |
— |
Standard 3-digit EIA marking |
|
Rated Working Voltage |
50V (Ceramic) / 63V - 100V (Polyester) |
V DC |
Maximum continuous DC rating |
|
Capacitance Tolerance |
+/-10% (K) to +/-20% (M) |
— |
Standard production grade |
|
Lead Pitch / Spacing |
2.54 mm / 5.08 mm |
mm |
Breadboard friendly |
|
Operating Temperature |
-25 to +85 |
°C |
Standard operating range |
Technical Specification Table
|
Parameter |
Value |
Unit |
Condition |
Test Conditions / Details |
|---|---|---|---|---|
|
Nominal Capacitance (104) |
C
|
0.1 (100nF / 100,000pF) |
uF |
1 kHz, 1.0 Vrms |
|
Nominal Capacitance (473) |
C |
0.047 (47nF / 47,000pF) |
uF |
1 kHz, 1.0 Vrms |
|
Working Voltage (Ceramic) |
WVDC |
50 |
V |
Continuous DC |
|
Working Voltage (Polyester) |
WVDC |
63 - 100 |
V |
Continuous DC |
|
Dielectric Withstanding Voltage |
VDW |
2x - 2.5x Rated Voltage |
V |
1 to 5 seconds duration |
|
Dissipation Factor |
tan delta |
<= 0.03 (Ceramic) / <= 0.01 (Polyester) |
— |
Measured at 1 kHz |
|
Insulation Resistance |
IR |
>= 10,000 |
MOhm |
1 minute at rated DC voltage |
|
Temperature Characteristics |
TC |
Y5P / Y5V / X7R (Ceramic) |
— |
Dielectric stability rating |
|
Solder Heat Resistance |
Tsolder |
260 |
°C |
Up to 5 seconds duration |
Common Applications
- AC-to-DC Power Supplies: wave and full-wave bridge rectifier networks are used in both linear power supplies and switch-mode power supplies (SMPS) to convert alternating current into direct current.
- Reverse Polarity Protection: This helps prevent damage to circuits when a battery or DC input is connected the wrong way around. It protects the circuit from harm caused by reversed connections.
- Flyback / Snubber Diodes: These diodes are used to stop voltage spikes that happen when inductive devices like relay coils, solenoids and DC motors are turned off. They protect the circuit from voltage surges.
- Voltage Clamping & Isolation: Diodes help control flow and separate different parts of a circuit. They are often used in battery chargers, power adapters and home automation control boards to clamp voltage and provide isolation, between stages.
