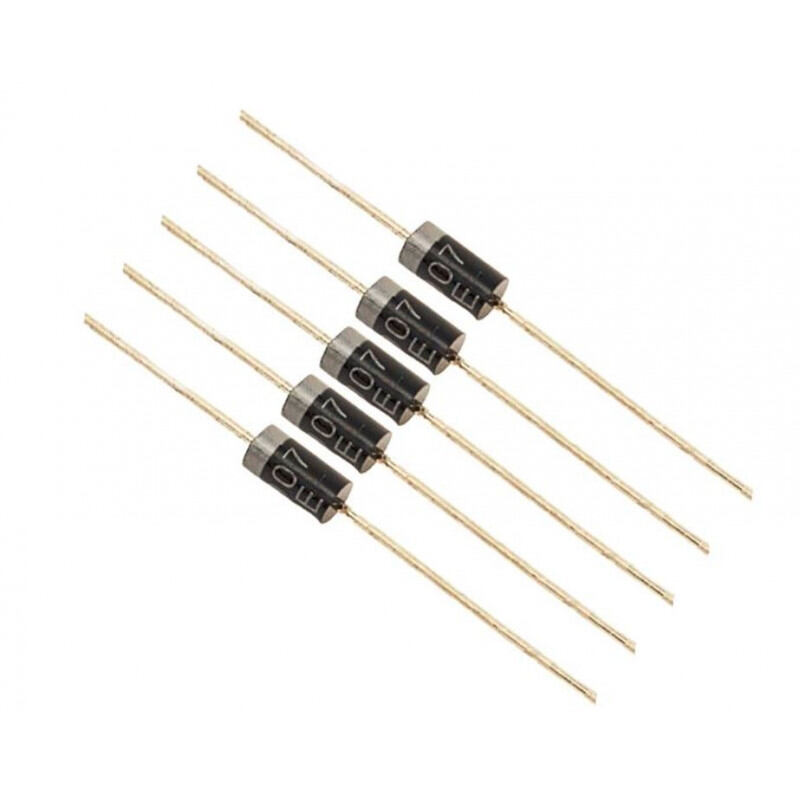

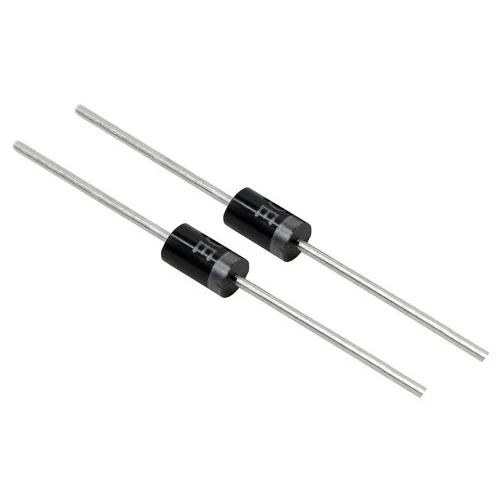

1N4007 Rectifier Diodes

The 1N4007 is a known general-purpose silicon rectifier diode. It is designed to handle a forward current of 1A. It can also handle a peak repetitive reverse voltage of 1000V (1 kV). This diode comes in a through-hole DO-41 (DO-204AL) package. It is used widely in power electronics. It is used in AC-to-DC bridge rectifiers. It is used in kickback flyback clamping. It is used for DC polarity protection.

This diode has forward voltage drop. It has reverse leakage current. It has surge current capability. The 1N4007 gives cost-effective performance. It is used in consumer, industrial and hobbyist circuit designs. The 1N4007 is a choice for many applications. The 1N4007 is a trusted component in projects. The 1N4007 is an option, for different types of circuits.

Key Features & Benefits :

• High Reverse Voltage Rating: Can handle peak reverse voltages up to 1000 volts. This makes it ideal for use in mains AC line rectification, including 110V to 240V AC systems.
• Reliable Current Delivery: Supports a forward current of 1.0 amps. It can also manage a -repetitive peak surge current of 30 amps lasting for a single half sine-wave over 8.3 milliseconds.
• Low Forward Voltage Drop: Keeps power loss with a forward voltage drop of about 1.1 volts when carrying 1 amp of current.
• Rugged DO-41 Axial Package: Designed for handling, soldering and mounting. It fits well on prototype boards, breadboards or production through-hole printed circuit boards.
• Diffusion Junction Technology: Provides junction reliability and low reverse leakage currents. Works consistently across temperatures from minus 55 degrees Celsius, to plus 150 degrees Celsius.
